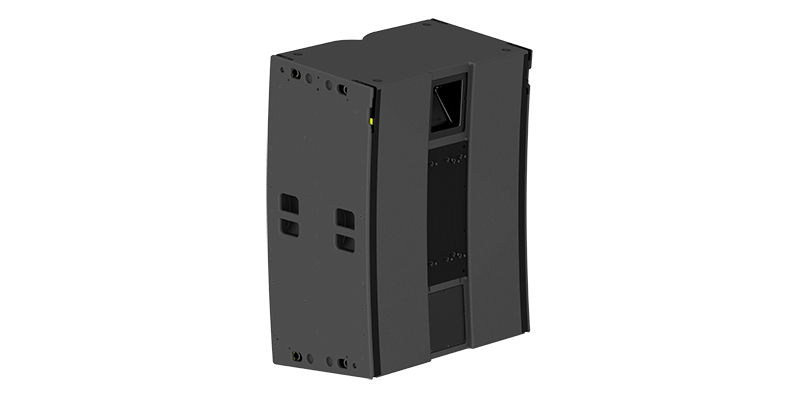

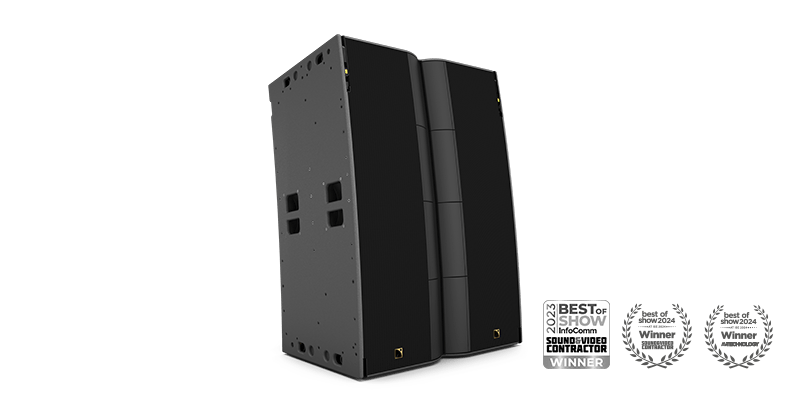

L2

The Sound. The Shape. The Future.

16-channel PULS, 10"

PROGRESSIVE ULTRA-DENSE LINE SOURCE

INTEGRATED CARDIOID

最大声压级	155 dB
带宽	45 Hz- 20 KHz
换能器	LC: 4 x 12" LF: 8 × 10’’ HF: 8 × 3’’
重量	158 kg / 348 lb
指向性	V: 10° H: Four modules Panflex:70° / 90° / 110° Integrated cardioid

PERFECTION

Line source technology perfected with PULS

ULTRA-DENSE

Best in class SPL/m, SPL/kg, SPL/m2

ULTRA-CONTROL

Clean stage and neighbouring area with Integrated Cardioid

ULTRA-EFFICIENT

Fast and errorless deployment

灵感

请查看我们的文档中心，获取更多关于此产品的文档。

16-channel active progressive curvature WST®
amplified by LA7.16/LA7.16i

Usable bandwidth (-10 dB)	45 Hz – 20 kHz ([L2 70])
Maximum SPL¹	Full element: 155 dB ([L2 70] First module: 147 dB ([L2 70])
Nominal directivity (-6 dB)	vertical: 10° progressive directivity horizontal: Four modules: Panflex 70° / 90° / 110° Integrated cardioid
Transducers	LC: 4 × 12’’ neodymium cone drivers LF: 8 × 10’’ neodymium cone drivers HF: 8 × 3’’ neodymium compression drivers
Acoustical load	LC/LF: Bass-reflex, L-Vents HF: DOSC waveguide, Panflex
Nominal impedance	LC : 8 Ω LF : 8 Ω HF : 8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Connectors	1 x 37-point male connector (32 points used)
Rigging and handling	flush-fitting 4-point captive rigging system compatible with L2D
Weight (net)	158 kg / 348 lb
Cabinet	premium grade Baltic birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Rigging components	high grade steel with anti-corrosion coating
Finish	dark grey brown Pantone 426 C
IP	IP55
