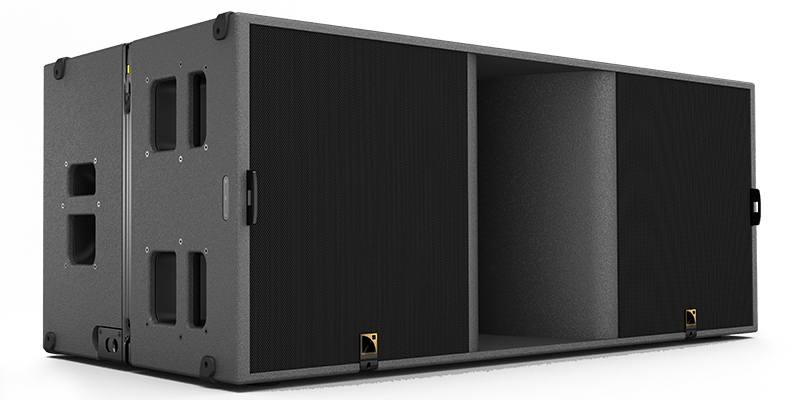

KS28
Reference high power subwoofer, dual 18"
| 最大声压级 | 143 dB |
| Low frequency limit | 25 Hz |
| 换能器 | LF: 2 x 18" |
| 重量 | 79 kg / 174 lb |
| 指向性 | standard or cardioid configurations |
POWERFUL
Broad bandwidth with exceptional dynamics for ultimate LF power
SHARP
Clear low-frequency power with L-VENTS™
LIGHT
High performance to weight ratio with enclosure thickness optimization process
灵感
需要更多信息？
请查看我们的文档中心，获取更多关于此产品的文档。
电声规格
Flyable subwoofer 2 x 18''
amplified by LA12X
| Low frequency limit (-10 dB) | 25 Hz ([KS28_100]) |
| Maximum SPL1 | 143 dB ([KS28_100]) |
| Nominal directivity (-6 dB) | standard or cardioid |
| Transducers | 2 × 18″ neodymium cone drivers |
| Acoustical load | bass-reflex, L-Vents |
| Nominal impedance | 4 Ω |
1 Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
物理规格
| Connectors | 1 × 4-point speakON |

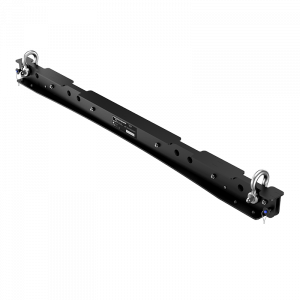

| Rigging and handling | flush-fitting 2-point rigging system |
| Weight (net) | 79 kg / 174 lb |
| Cabinet | premium grade Baltic beech and birch plywood |
| Front | coated steel grill |
| Rigging components | high grade steel |
| Finish | dark grey brown Pantone 426 C |
| IP | IP55 |
