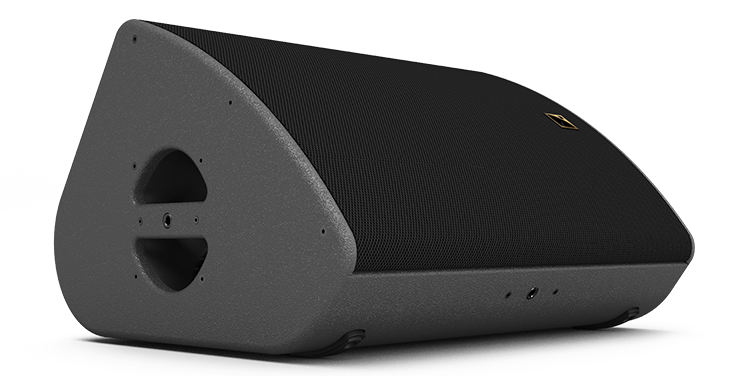

X15 HiQ

Diva of the stage

2-way active, 15"

POINT SOURCE

POWERFUL

Strong vocal impact with high immunity to feedback

PRECISE

Controlled H. and V. directivity with Ellipsoid Waveguide™

SHARP

Clear low-frequency power with L-VENTS™

RUGGED

Build to sustain energetic artists

需要更多信息？

请查看我们的文档中心，获取更多关于此产品的文档。

2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)	55 Hz – 20 kHz ([X15])
Maximum SPL¹	138 dB ([X15])
Nominal directivity (-6 dB)	vertical: 60° symmetric horizontal: 40° symmetric
Monitor angle	without risers: 35° with risers: 55°
Transducers	LF: 1 × 15″ cone driver HF: 1 × 3″ diaphragm compression driver, neodymium
Acoustical load	load bass-reflex, L-Vents, ellipsoidal waveguide
Nominal impedance	LF: 8 Ω HF: 8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Connectors	IN: 1 × 4-point speakON LINK: 1 × 4-point speakON
Rigging and handling	2 handles 1 DIN580-compatible M8 threaded insert 4 M10 threaded inserts 2 × 35 mm pole sockets
Weight (net)	21 kg / 46.3 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	steel with anti-corrosion coating acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C custom RAL code on special order
IP	IP43
