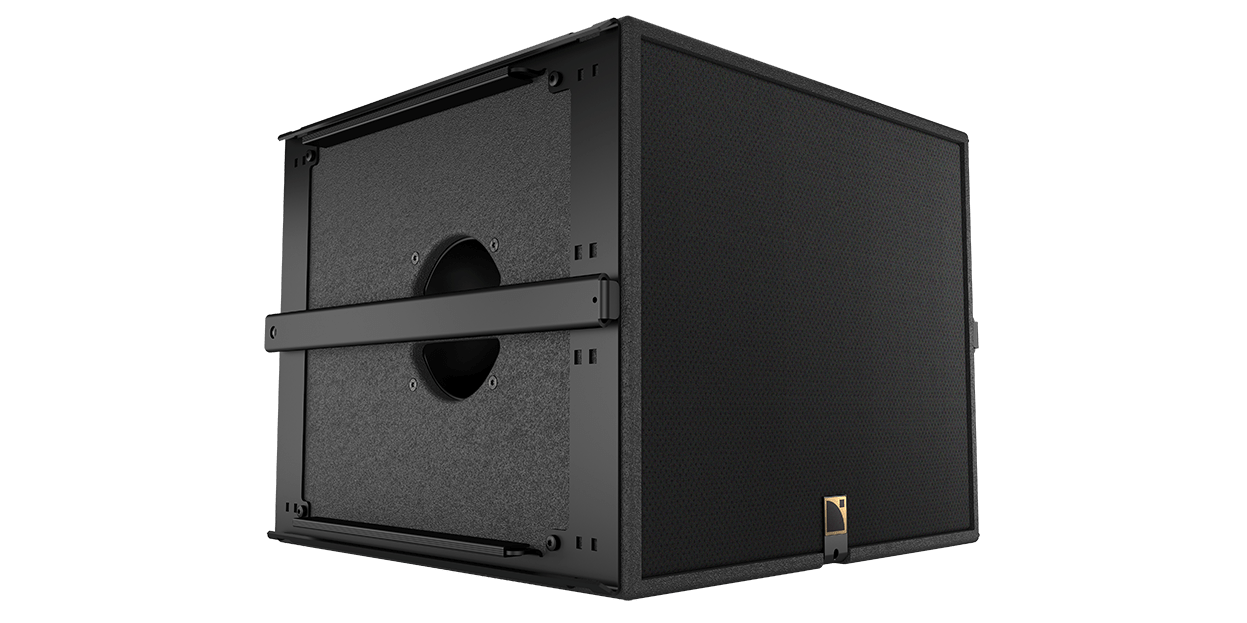

SB15m

Compact subwoofer, 15"

OMNI / CARDIO SUBWOOFER

最大声压级	137 dB
Low frequency limit	40 Hz
换能器	LF: 1 x 15"
重量	36 kg / 79 lb
指向性	standard or cardioid configurations

COMPACT

Power and impact in compact enclosure

SHARP

Clear low-frequency power with L-VENTS™

需要更多信息？

请查看我们的文档中心，获取更多关于此产品的文档。

High power compact subwoofer : 1 x 15''
amplified by LA2Xi / LA4X / LA8 / LA12X

Low frequency limit (-10 dB)	40 Hz ([SB15_100])
Maximum SPL¹	137 dB ([SB15_100]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X 131 dB ([SB15_100]) with LA2Xi
Nominal directivity (-6 dB)	standard or cardioid
Transducers	1 x 15″ cone driver
Acoustical load	bass-reflex, L-Vents
Nominal impedance	8 Ω

¹ Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).

Connectors	2 × 4-point speakON
Rigging and handling	2 x handles 2 x coupling bars and 2 x locking tabs 1 × 35 mm pole socket
Weight (net)	36 kg / 79 lb
Cabinet	premium grade Baltic birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Rigging components	high grade steel with anti-corrosion coating
Finish	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP	IP55
